Flat Display v2
Capacitive touch panel with display and humidity probe
REF: ZVIFDV2

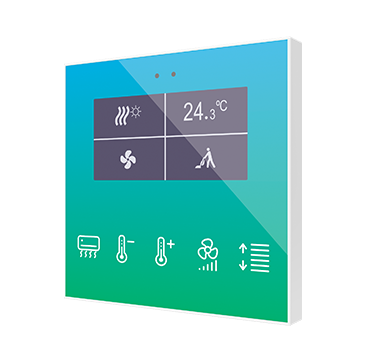

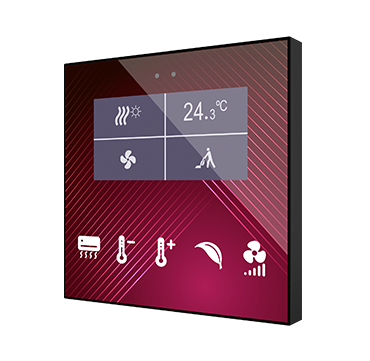

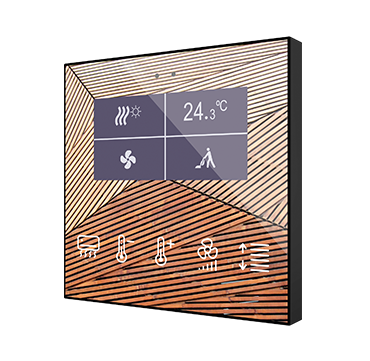

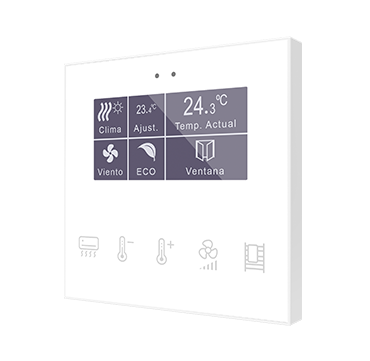

Backlit capacitive touch panel in Flat family, with proximity and humidity sensor, flat design (9 mm) and total customization. Everyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 5 buttons available and up to 8 indicators can be shown on its 2.4" display. The backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat Display v2 includes internal temperature probe and humidity sensor, as well as a thermostat and 2 analog-digital inputs that may be configured for potential-free sensors and push buttons, temperature probes or motion sensors. Accessories: temperature probe and motion sensor.
On-line application for designing your own Capacitive SwitchApplication Program ETS
Only for ETS5/ETS6 (see Warning)Technical Documentation
Tools
Accessories
- Accessories not included+
- Flat AmbienT (Ref. ZACFAT)
- SQ-AmbienT (Ref. ZAC-SQAT)
- White temperature probe - mini (Ref. ZACNTCW)
- Temperature probes (Ref. ZACNTCF/E/S)
- EyeZen IN (Ref. ZPDEZIN)
- Motion detector - X (Ref. ZN1IO-DETEC-X)
- Door/window flush-mounted contact (Ref. ZACWDF1W/B/G)
- Door/window flush-mounted contact (Ref. 990004607/12)
- Door/window surface-mounted contact - L (Ref. 990000306/07/12)
- Door/window surface-mounted contact - S (Ref. 990001206/07/12)
- Motion detector - P (Ref. ZN1IO-DETEC-P)
- Door/window flush-mounted contact (Ref. 990000107/09/10/12)
Marketing Toolbox
Warning
Update ETS5/ETS6 with the last version in order to be able to import the product.
