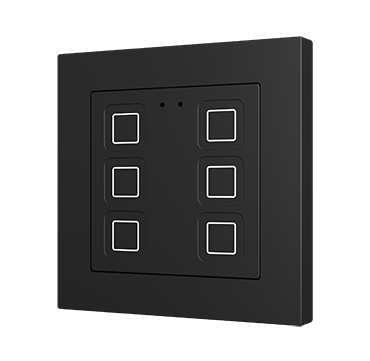

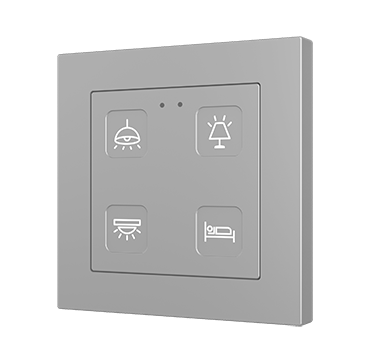

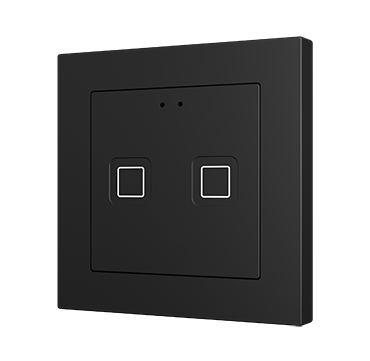

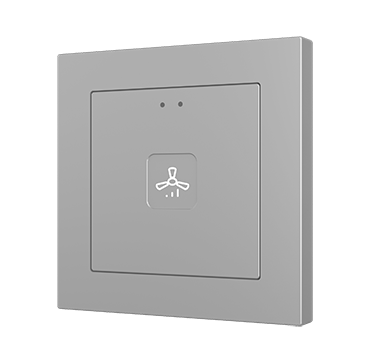

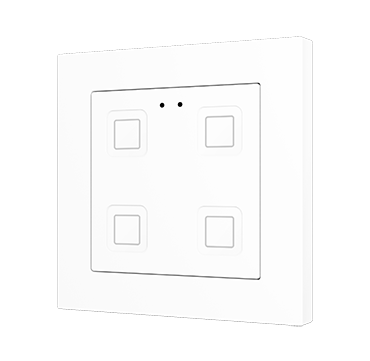

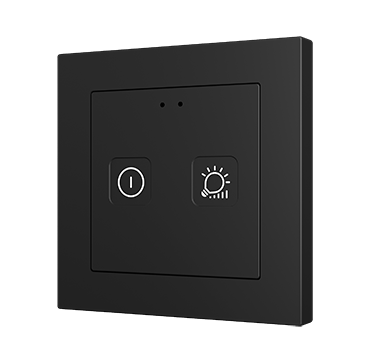

Tecla 55 X1/X2/X4/X6
Backlit capacitive touch switch (55 x 55 mm)
REF: ZVIT55X1/X2/X4/X6
New family of flush fitting polycarbonate capacitive touch switches with customisable icons, to be combined with 55 x 55 mm frames and Zennio ZS55 switches and sockets. 1, 2, 4 or 6-button versions all available with backlit icons that adapt according to ambient luminosity and proximity sensor. It incorporates a thermostat and one input for temperature probe. Installation in standard back box with 55 x 55 1 to 4-gang frames. Frame not included. Accessories: temperature probe.
Application Program ETS
Only for ETS5 (see Warning).Technical Documentation
Tools
Accessories
- Accessories not included+
- Flat AmbienT (Ref. ZACFAT)
- SQ-AmbienT (Ref. ZAC-SQAT)
- White temperature probe - mini (Ref. ZACNTCW)
- Temperature probes (Ref. ZACNTCF/E/S)
- Temperature probe (Ref. 9900015)
- Door/window flush-mounted contact (Ref. ZACWDF1W/B/G)
- Door/window flush-mounted contact (Ref. 990000107/09/10/12)
- ZS55 - Frames (Ref. 980000Y0X)
Marketing Toolbox
- Pictures
- CE Certification
- UKCA Certification
- REACH Certificate
- KNX Certificate of Conformity - Tecla 55 X6
- KNX Certificate of Conformity - Tecla 55 X4
- KNX Certificate of Conformity - Tecla 55 X2
- KNX Certificate of Conformity - Tecla 55 X1
- KNX Certificate - Tecla 55 X6
- KNX Certificate - Tecla 55 X4
- KNX Certificate - Tecla 55 X2
- KNX Certificate - Tecla 55 X1
Warning
Update ETS5 with the last version in order to be able to import the product.
