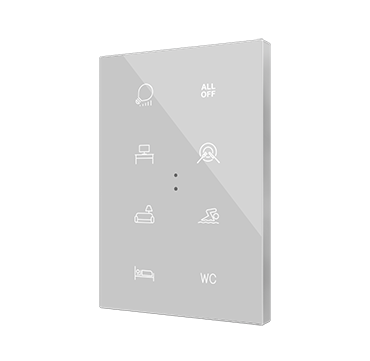

Flat XL X4/X6/X8/X10

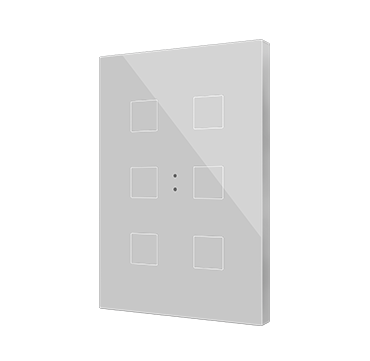

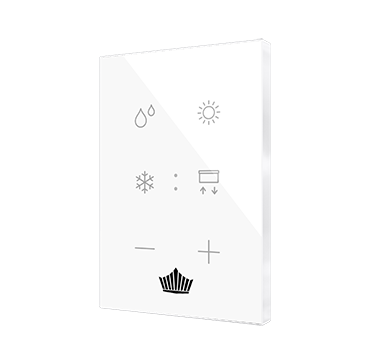

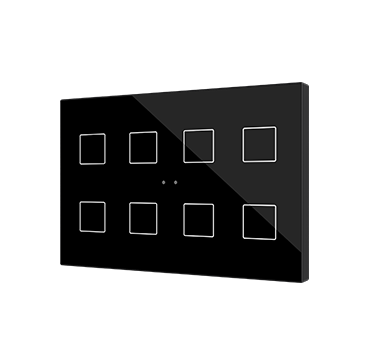

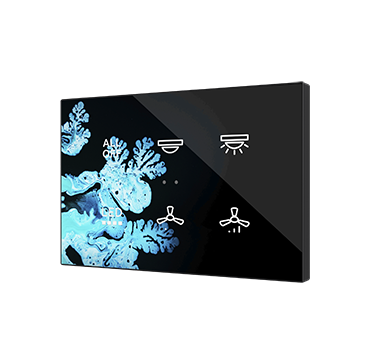

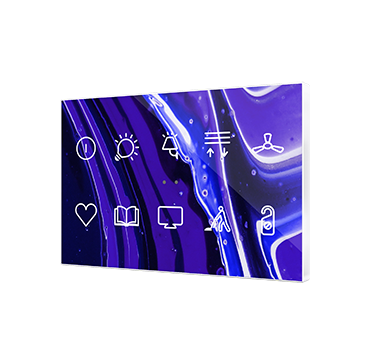

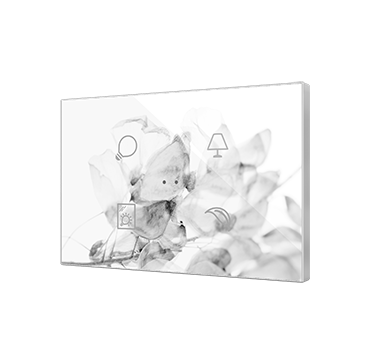

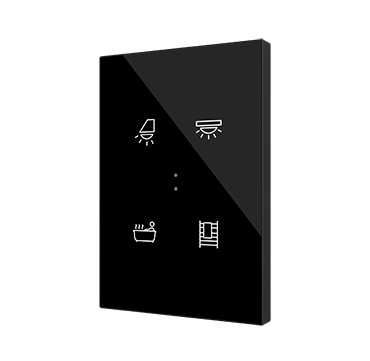

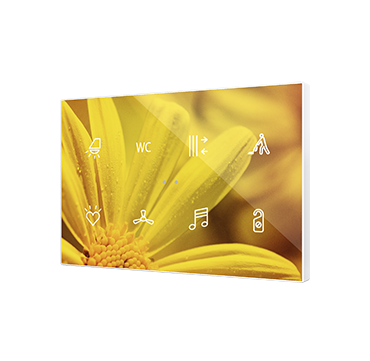

Customisable backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm) in XL format
REF: ZVIFXLX4/6/8/10
Create unique designs, including images, icons, texts or logos printed on tempered glass. 4, 6, 8 or 10-button versions available all with backlit icons that adapt according to ambient luminosity and proximity sensor. Flat XL 4/6/8/10 incorporates an internal temperature probe and thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in European, Italian, Australian, American or British standard back box. Accessories: temperature probe and motion sensor. Available models: Standard White/Gloss White/Black/Silver or Customised.
On-line application for designing your own Capacitive SwitchApplication Program ETS
Only for ETS5/ETS6 (see Warning)Technical Documentation
Tools
Accessories
- Accessories not included+
- Flat AmbienT (Ref. ZACFAT)
- SQ-AmbienT (Ref. ZAC-SQAT)
- White temperature probe - mini (Ref. ZACNTCW)
- Temperature probes (Ref. ZACNTCF/E/S)
- EyeZen IN (Ref. ZPDEZIN)
- Motion detector - X (Ref. ZN1IO-DETEC-X)
- Door/window flush-mounted contact (Ref. ZACWDF1W/B/G)
- Door/window flush-mounted contact (Ref. 990004607/12)
- Door/window surface-mounted contact - L (Ref. 990000306/07/12)
- Door/window surface-mounted contact - S (Ref. 990001206/07/12)
- Motion detector - P (Ref. ZN1IO-DETEC-P)
- Door/window flush-mounted contact (Ref. 990000107/09/10/12)
Marketing Toolbox
- Pictures
- CE Certification
- UKCA Certification
- KNX Certificate of Conformity - Flat XL X10
- KNX Certificate of Conformity - Flat XL X8
- KNX Certificate of Conformity - Flat XL X6
- KNX Certificate of Conformity - Flat XL X4
- KNX Certificate - Flat XL X10
- KNX Certificate - Flat XL X8
- KNX Certificate - Flat XL X6
- KNX Certificate - Flat XL X4
Warning
Update ETS5/ETS6 with the last version in order to be able to import the product.
