Flat 55 Display v2
Capacitive touch panel with display (55 x 55 mm)
REF: ZVIF55DV2

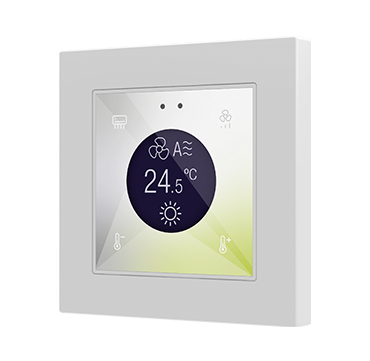

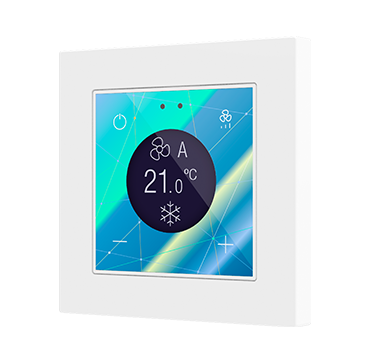

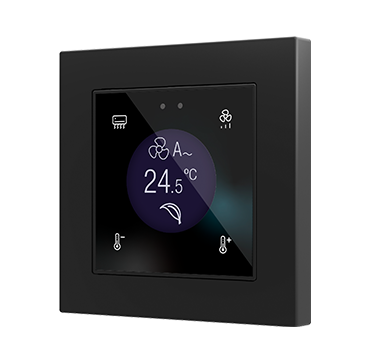

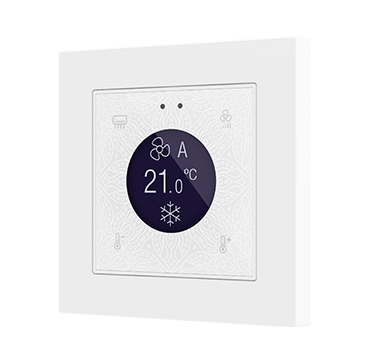

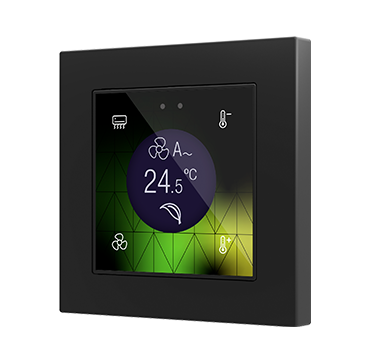

Backlit capacitive touch panel with round display in Flat 55 family (standard frames 55 x 55 mm), with proximity sensor, flat design, with total customisation. Flush fitting with Zennio ZS55 frames, switches and sockets. Anyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 4 buttons available and up to 4 indicators can be shown on its central display. The backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat 55 Display v2 includes a thermostat, as well as 2 analog-digital inputs that may be configured for potential-free sensors and push buttons, temperature probes or motion sensors. Installation in standard mounting box with 55 x 55 frames of 1/2/3/4 modules (white, gloss white, anthracite or silver). Accessories: temperature probe (included) and motion sensor. Frame not included.
On-line application for designing your own Capacitive Switch.Application Program ETS
Only for ETS5/ETS6 (see Warning).Technical Documentation
Tools
Accessories
- Accessories not included+
- Flat AmbienT (Ref. ZACFAT)
- SQ-AmbienT (Ref. ZAC-SQAT)
- White temperature probe - mini (Ref. ZACNTCW)
- Temperature probes (Ref. ZACNTCF/E/S)
- EyeZen IN (Ref. ZPDEZIN)
- Motion detector - X (Ref. ZN1IO-DETEC-X)
- Door/window flush-mounted contact (Ref. ZACWDF1W/B/G)
- Door/window flush-mounted contact (Ref. 990004607/12)
- Door/window surface-mounted contact - L (Ref. 990000306/07/12)
- Door/window surface-mounted contact - S (Ref. 990001206/07/12)
- Motion detector - P (Ref. ZN1IO-DETEC-P)
- Door/window flush-mounted contact (Ref. 990000107/09/10/12)
- ZS55 - Frames (Ref. 980000Y0X)
Marketing Toolbox
Warning
Update ETS5/ETS6 with the last version in order to be able to import the product.
